Kaggle 공기 오염 EDA(Exploratory Data Analysis)

EDA란?

수집한 데이터가 들어왔을 때, 이를 다양한 각도에서 관찰하고 이해하며 data의 feature을 파악하는 과정입니다. 주관적으로 데이터를 바라보는 것이 아닌 그래프,통계와 같은 방식들을 사용하여 직관적으로 데이터를 바라봐야합니다.

왜 EDA를 해야 하는가?

기본적으로 raw 데이터는 더럽습니다. 결측치(NAN)와 데이터의 타입 등 데이터 전처리를 진행해야 하며 data column명이 무엇을 의미하는지, 해당 데이터의 분 및 값들을 확인하면서 데이터 표현 방식을 더 잘 이해하고, 데이터들끼리의 상관관계를 바탕으로 새로운 data를 만들 수도 있기 때문입니다.
다양한 가설들을 세우고 이를 그래프나 통계적인 방식으로 확인하면서, 데이터들의 패턴을 파악 할 수 있습니다.

EDA 실습

kaggle에서 예시 data를 가져와 Amazon Sagemaker내에 노트북 인스턴스 환경에서 진행하였습니다. 추후 Amazon Sagemaker 쪽 서비스도 공부하며 정리하여 올리도록 하겠습니다.



데이터 출처:

https://www.kaggle.com/datasets/d44dbbc86cc4cf29d8184335785adb6b1dc6398af1d746825f63145a3bbd8b49

Air Pollution Forecasting - LSTM Multivariate



import os
import boto3  # Python library for Amazon API
import botocore
from botocore.exceptions import ClientError

def download_from_s3(url):
    url_parts = url.split("/")  # => ['s3:', '', 'sagemakerbucketname', 'data', ...
    bucket_name = url_parts[2]
    key = os.path.join(*url_parts[3:])
    filename = url_parts[-1]
    if not os.path.exists(filename):
        try:
            # Create an S3 client
            s3 = boto3.resource('s3')
            print('Downloading {} to {}'.format(url, filename))
            s3.Bucket(bucket_name).download_file(key, filename)
        except botocore.exceptions.ClientError as e:
            if e.response['Error']['Code'] == "404":
                print('The object {} does not exist in bucket {}'.format(
                    key, bucket_name))
            else:
                raise

download_from_s3("s3://---/LSTM-Multivariate_pollution.csv")

import numpy as np
import pandas as pd
import matplotlib as mpl
import matplotlib.pyplot as plt
import seaborn as sns
from datetime import datetime

file = pd.read_csv("LSTM-Multivariate_pollution.csv")

Column 설명

• date: date
• pollution : Air pollution
• dew: dew point(이슬점)
• press: Pressure
• wnd_dir : wind direction
• wnd_spd: wind speed
• snow, rain : cumulative number of housrs of snow and rain

df = pd.DataFrame(file)
df.head()

	date	pollution	dew	temp	press	wnd_dir	wnd_spd	snow	rain
0	2010-01-02 00:00:00	129.0	-16	-4.0	1020.0	SE	1.79	0	0
1	2010-01-02 01:00:00	148.0	-15	-4.0	1020.0	SE	2.68	0	0
2	2010-01-02 02:00:00	159.0	-11	-5.0	1021.0	SE	3.57	0	0
3	2010-01-02 03:00:00	181.0	-7	-5.0	1022.0	SE	5.36	1	0
4	2010-01-02 04:00:00	138.0	-7	-5.0	1022.0	SE	6.25	2	0

df.shape

(43800, 9)

df.describe()

	pollution	dew	temp	press	wnd_spd	snow	rain
count	43800.000000	43800.000000	43800.000000	43800.000000	43800.000000	43800.000000	43800.000000
mean	94.013516	1.828516	12.459041	1016.447306	23.894307	0.052763	0.195023
std	92.252276	14.429326	12.193384	10.271411	50.022729	0.760582	1.416247
min	0.000000	-40.000000	-19.000000	991.000000	0.450000	0.000000	0.000000
25%	24.000000	-10.000000	2.000000	1008.000000	1.790000	0.000000	0.000000
50%	68.000000	2.000000	14.000000	1016.000000	5.370000	0.000000	0.000000
75%	132.250000	15.000000	23.000000	1025.000000	21.910000	0.000000	0.000000
max	994.000000	28.000000	42.000000	1046.000000	585.600000	27.000000	36.000000

dew temp pollution의 중앙값과 평균값차이가 심한 모습을 볼 수 있습니다.

df.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 43800 entries, 0 to 43799
Data columns (total 9 columns):
 #   Column     Non-Null Count  Dtype
---  ------     --------------  -----
 0   date       43800 non-null  object
 1   pollution  43800 non-null  float64
 2   dew        43800 non-null  int64
 3   temp       43800 non-null  float64
 4   press      43800 non-null  float64
 5   wnd_dir    43800 non-null  object
 6   wnd_spd    43800 non-null  float64
 7   snow       43800 non-null  int64
 8   rain       43800 non-null  int64
dtypes: float64(4), int64(3), object(2)
memory usage: 3.0+ MB

# 결측값 확인
df.isnull().values.any()

False

missed = pd.DataFrame()
missed['column'] = df.columns

missed['percent'] = [round(100* df[col].isnull().sum() / len(df), 2) for col in df.columns]

missed = missed.sort_values('percent',ascending=False)
print(missed)

      column  percent
0       date      0.0
1  pollution      0.0
2        dew      0.0
3       temp      0.0
4      press      0.0
5    wnd_dir      0.0
6    wnd_spd      0.0
7       snow      0.0
8       rain      0.0

df.tail()

	date	pollution	dew	temp	press	wnd_dir	wnd_spd	snow	rain
43795	2014-12-31 19:00:00	8.0	-23	-2.0	1034.0	NW	231.97	0	0
43796	2014-12-31 20:00:00	10.0	-22	-3.0	1034.0	NW	237.78	0	0
43797	2014-12-31 21:00:00	10.0	-22	-3.0	1034.0	NW	242.70	0	0
43798	2014-12-31 22:00:00	8.0	-22	-4.0	1034.0	NW	246.72	0	0
43799	2014-12-31 23:00:00	12.0	-21	-3.0	1034.0	NW	249.85	0	0

df['wnd_dir']=df['wnd_dir'].astype('string')

df.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 43800 entries, 0 to 43799
Data columns (total 9 columns):
 #   Column     Non-Null Count  Dtype
---  ------     --------------  -----
 0   date       43800 non-null  object
 1   pollution  43800 non-null  float64
 2   dew        43800 non-null  int64
 3   temp       43800 non-null  float64
 4   press      43800 non-null  float64
 5   wnd_dir    43800 non-null  string
 6   wnd_spd    43800 non-null  float64
 7   snow       43800 non-null  int64
 8   rain       43800 non-null  int64
dtypes: float64(4), int64(3), object(1), string(1)
memory usage: 3.0+ MB

df['wnd_dir'].unique()

<StringArray>
['SE', 'cv', 'NW', 'NE']
Length: 4, dtype: string

def wind_encode(s):
    if s == "SE":
        return 1
    elif s == "NE":
        return 2
    elif s == "NW":
        return 3
    else:
        return 4

df["wind_dir"] = df["wnd_dir"].apply(wind_encode)
df = df.drop(["wnd_dir"], axis=1)
df.head()

	date	pollution	dew	temp	press	wnd_spd	snow	rain	wind_dir
0	2010-01-02 00:00:00	129.0	-16	-4.0	1020.0	1.79	0	0	1
1	2010-01-02 01:00:00	148.0	-15	-4.0	1020.0	2.68	0	0	1
2	2010-01-02 02:00:00	159.0	-11	-5.0	1021.0	3.57	0	0	1
3	2010-01-02 03:00:00	181.0	-7	-5.0	1022.0	5.36	1	0	1
4	2010-01-02 04:00:00	138.0	-7	-5.0	1022.0	6.25	2	0	1

df['date']= pd.to_datetime(df['date'],format = '%Y-%m-%d %H:%M:%S') # object값 datetime으로 변경
df.set_index("date", inplace = True) # index로 설정

df

	pollution	dew	temp	press	wnd_spd	snow	rain	wind_dir
date
2010-01-02 00:00:00	129.0	-16	-4.0	1020.0	1.79	0	0	1
2010-01-02 01:00:00	148.0	-15	-4.0	1020.0	2.68	0	0	1
2010-01-02 02:00:00	159.0	-11	-5.0	1021.0	3.57	0	0	1
2010-01-02 03:00:00	181.0	-7	-5.0	1022.0	5.36	1	0	1
2010-01-02 04:00:00	138.0	-7	-5.0	1022.0	6.25	2	0	1
...	...	...	...	...	...	...	...	...
2014-12-31 19:00:00	8.0	-23	-2.0	1034.0	231.97	0	0	3
2014-12-31 20:00:00	10.0	-22	-3.0	1034.0	237.78	0	0	3
2014-12-31 21:00:00	10.0	-22	-3.0	1034.0	242.70	0	0	3
2014-12-31 22:00:00	8.0	-22	-4.0	1034.0	246.72	0	0	3
2014-12-31 23:00:00	12.0	-21	-3.0	1034.0	249.85	0	0	3

43800 rows × 8 columns

구간별 pollution을 알 수 있도록 datetime 구간 나누기

df['year'] = pd.DatetimeIndex(df.index).year
df['month'] = pd.DatetimeIndex(df.index).month
df['day'] = pd.DatetimeIndex(df.index).day
df['hour'] = pd.DatetimeIndex(df.index).hour
df

	pollution	dew	temp	press	wnd_spd	snow	rain	wind_dir	year	month	day	hour
date
2010-01-02 00:00:00	129.0	-16	-4.0	1020.0	1.79	0	0	1	2010	1	2	0
2010-01-02 01:00:00	148.0	-15	-4.0	1020.0	2.68	0	0	1	2010	1	2	1
2010-01-02 02:00:00	159.0	-11	-5.0	1021.0	3.57	0	0	1	2010	1	2	2
2010-01-02 03:00:00	181.0	-7	-5.0	1022.0	5.36	1	0	1	2010	1	2	3
2010-01-02 04:00:00	138.0	-7	-5.0	1022.0	6.25	2	0	1	2010	1	2	4
...	...	...	...	...	...	...	...	...	...	...	...	...
2014-12-31 19:00:00	8.0	-23	-2.0	1034.0	231.97	0	0	3	2014	12	31	19
2014-12-31 20:00:00	10.0	-22	-3.0	1034.0	237.78	0	0	3	2014	12	31	20
2014-12-31 21:00:00	10.0	-22	-3.0	1034.0	242.70	0	0	3	2014	12	31	21
2014-12-31 22:00:00	8.0	-22	-4.0	1034.0	246.72	0	0	3	2014	12	31	22
2014-12-31 23:00:00	12.0	-21	-3.0	1034.0	249.85	0	0	3	2014	12	31	23

43800 rows × 12 columns

df_2010 = df[df['year']==2010]
df_2011 = df[df['year']==2011]
df_2012 = df[df['year']==2012]
df_2013 = df[df['year']==2013]
df_2014 = df[df['year']==2014]

df_2014

	pollution	dew	temp	press	wnd_spd	snow	rain	wind_dir	year	month	day	hour
date
2014-01-01 00:00:00	24.0	-20	7.0	1014.0	143.48	0	0	3	2014	1	1	0
2014-01-01 01:00:00	53.0	-20	7.0	1013.0	147.50	0	0	3	2014	1	1	1
2014-01-01 02:00:00	65.0	-20	6.0	1013.0	151.52	0	0	3	2014	1	1	2
2014-01-01 03:00:00	70.0	-20	6.0	1013.0	153.31	0	0	3	2014	1	1	3
2014-01-01 04:00:00	79.0	-18	3.0	1012.0	0.89	0	0	4	2014	1	1	4
...	...	...	...	...	...	...	...	...	...	...	...	...
2014-12-31 19:00:00	8.0	-23	-2.0	1034.0	231.97	0	0	3	2014	12	31	19
2014-12-31 20:00:00	10.0	-22	-3.0	1034.0	237.78	0	0	3	2014	12	31	20
2014-12-31 21:00:00	10.0	-22	-3.0	1034.0	242.70	0	0	3	2014	12	31	21
2014-12-31 22:00:00	8.0	-22	-4.0	1034.0	246.72	0	0	3	2014	12	31	22
2014-12-31 23:00:00	12.0	-21	-3.0	1034.0	249.85	0	0	3	2014	12	31	23

8760 rows × 12 columns

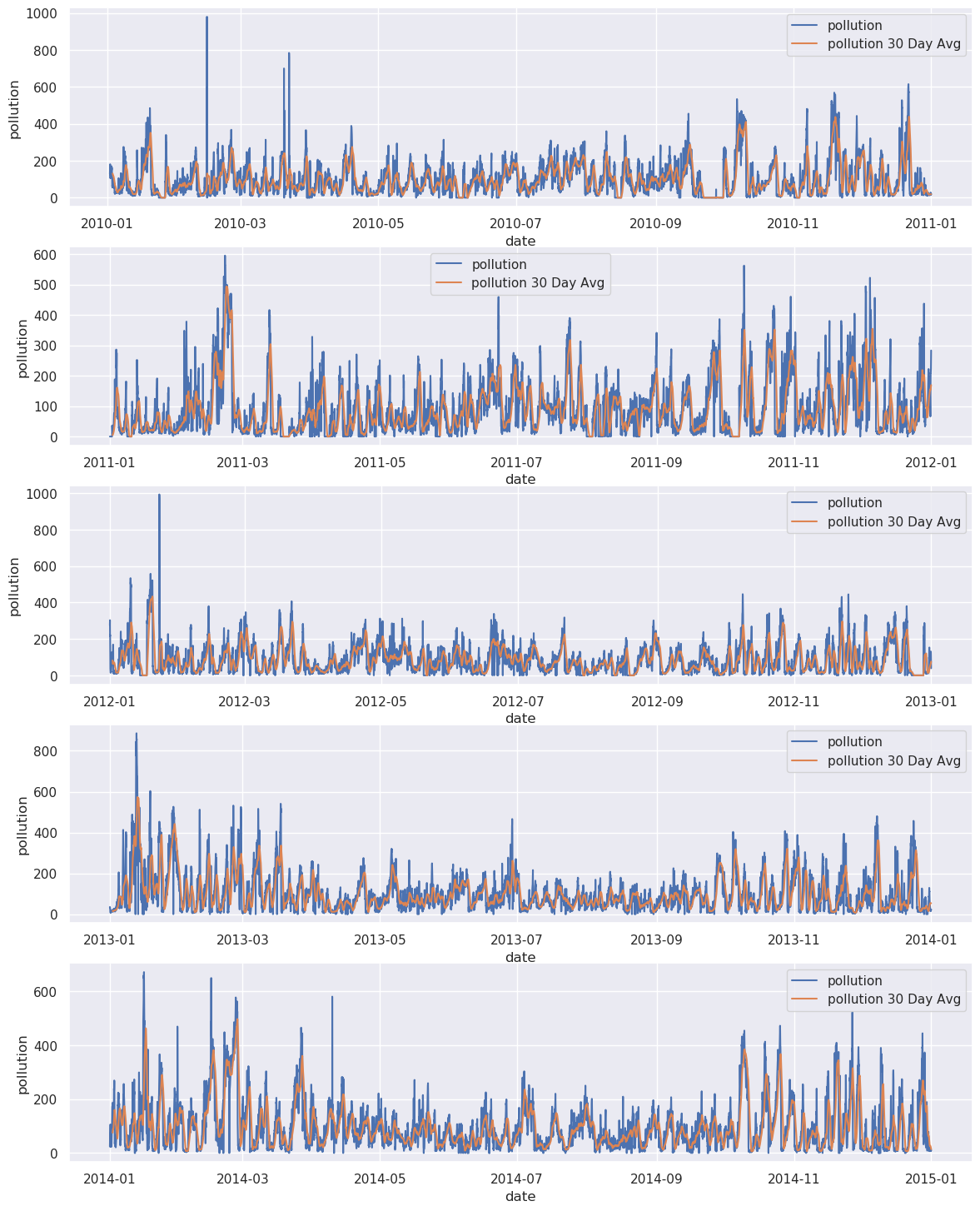

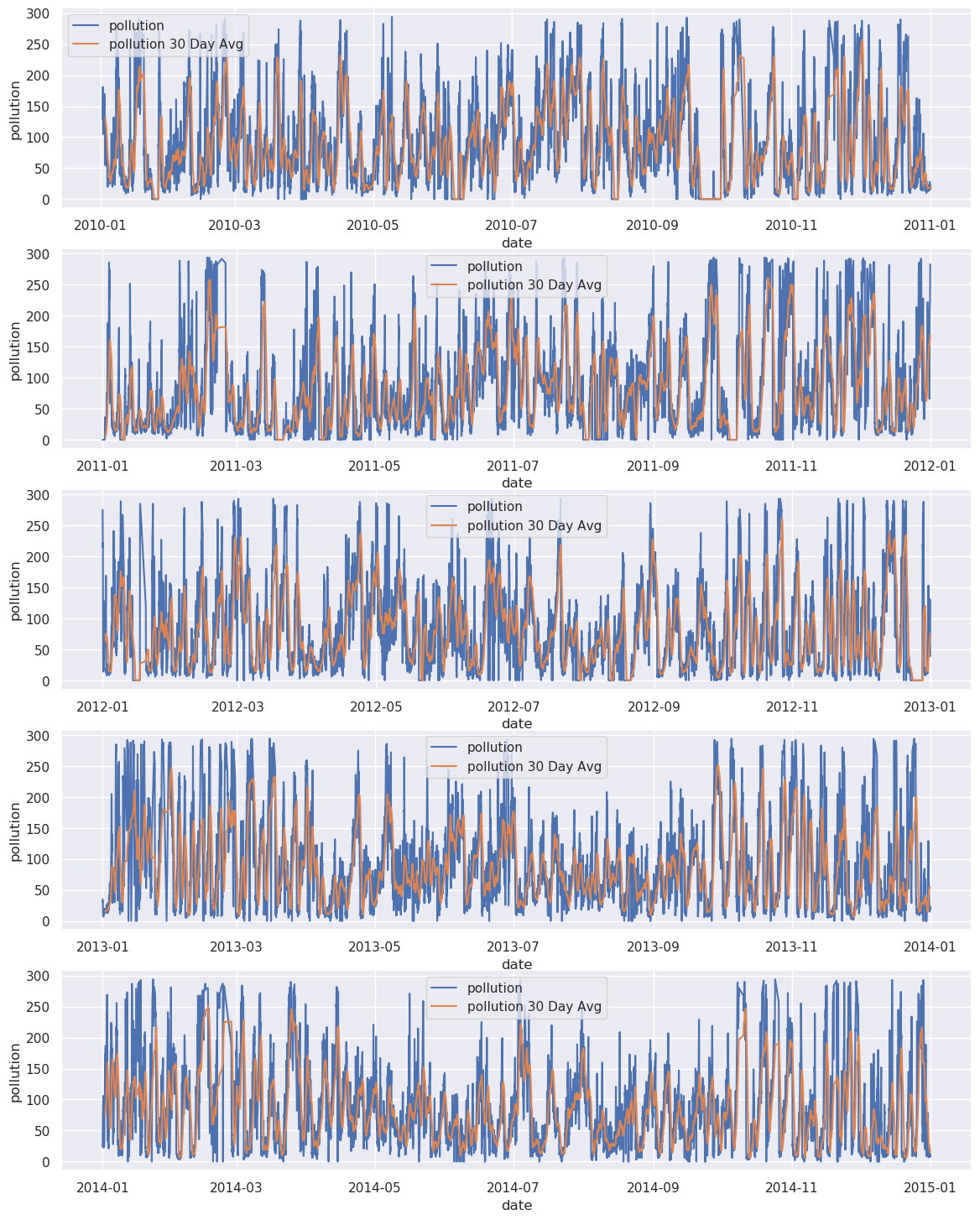

pollution 추세 시각화

fig, ax = plt.subplots(nrows=5)
sns.set_style('whitegrid')
sns.set(rc={'figure.figsize':(14,18)})
sns.lineplot(data = df_2010, x = df_2010.index, y = 'pollution',label='pollution',ax=ax[0])
sns.lineplot(data = df_2010, x = df_2010.index, y = df_2010['pollution'].rolling(window=30).mean(),label='pollution 30 Day Avg',ax=ax[0])
sns.lineplot(data = df_2011, x = df_2011.index, y = 'pollution',label='pollution',ax=ax[1])
sns.lineplot(data = df_2011, x = df_2011.index, y = df_2011['pollution'].rolling(window=30).mean(),label='pollution 30 Day Avg',ax=ax[1])
sns.lineplot(data = df_2012, x = df_2012.index, y = 'pollution',label='pollution',ax=ax[2])
sns.lineplot(data = df_2012, x = df_2012.index, y = df_2012['pollution'].rolling(window=30).mean(),label='pollution 30 Day Avg',ax=ax[2])
sns.lineplot(data = df_2013, x = df_2013.index, y = 'pollution',label='pollution',ax=ax[3])
sns.lineplot(data = df_2013, x = df_2013.index, y = df_2013['pollution'].rolling(window=30).mean(),label='pollution 30 Day Avg',ax=ax[3])
sns.lineplot(data = df_2014, x = df_2014.index, y = 'pollution',label='pollution',ax=ax[4])
sns.lineplot(data = df_2014, x = df_2014.index, y = df_2014['pollution'].rolling(window=30).mean(),label='pollution 30 Day Avg',ax=ax[4])
plt.show()

)

Pollution

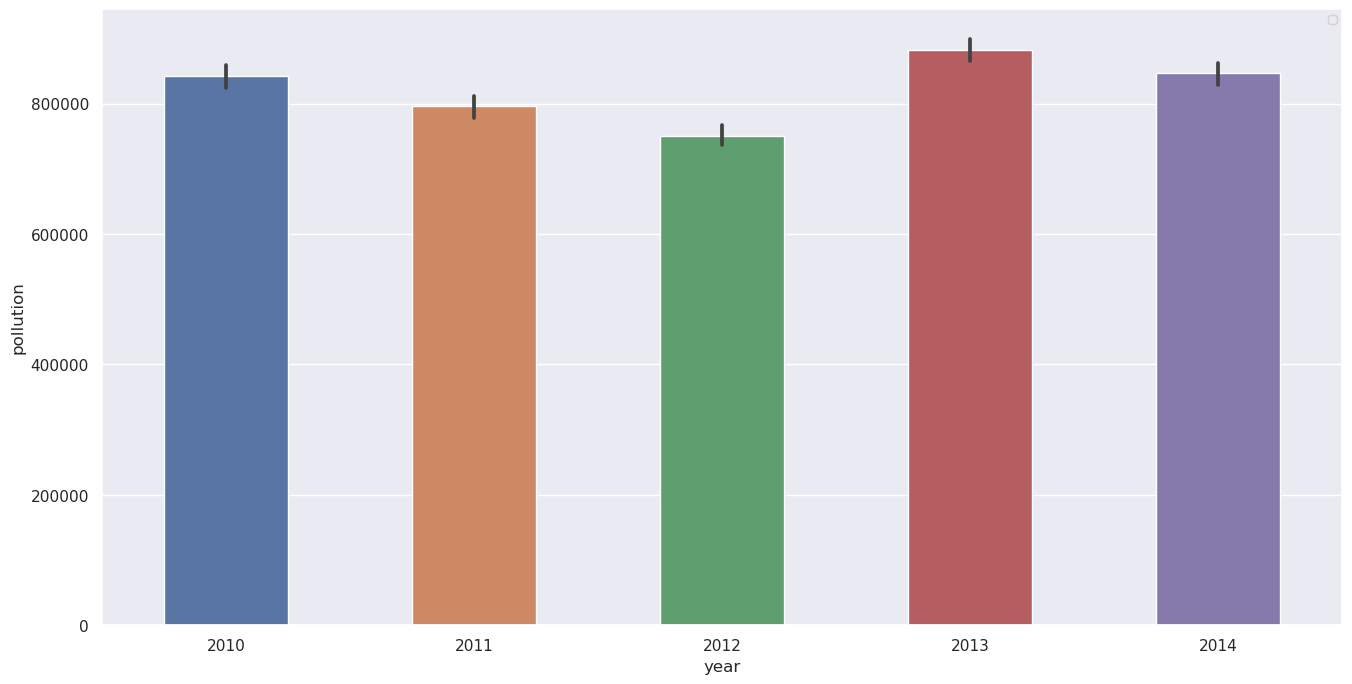

연간 합계량 도출

sns.set_style('whitegrid')
width = 0.5
sns.set(rc={'figure.figsize':(16,8)})
ax = sns.barplot(x=df["year"], y=df["pollution"], data=df, estimator=np.sum)

for bar in ax.patches:
    x = bar.get_x() # 막대 좌측 하단 x 좌표
    old_width = bar.get_width() # 기존 막대 폭
    bar.set_width(width) # 폭변경
    bar.set_x(x+(old_width-width)/2) # 막대 좌측 하단 x 좌표 업데이트
plt.legend(loc =1,prop={'size':8})
plt.show()

No handles with labels found to put in legend.

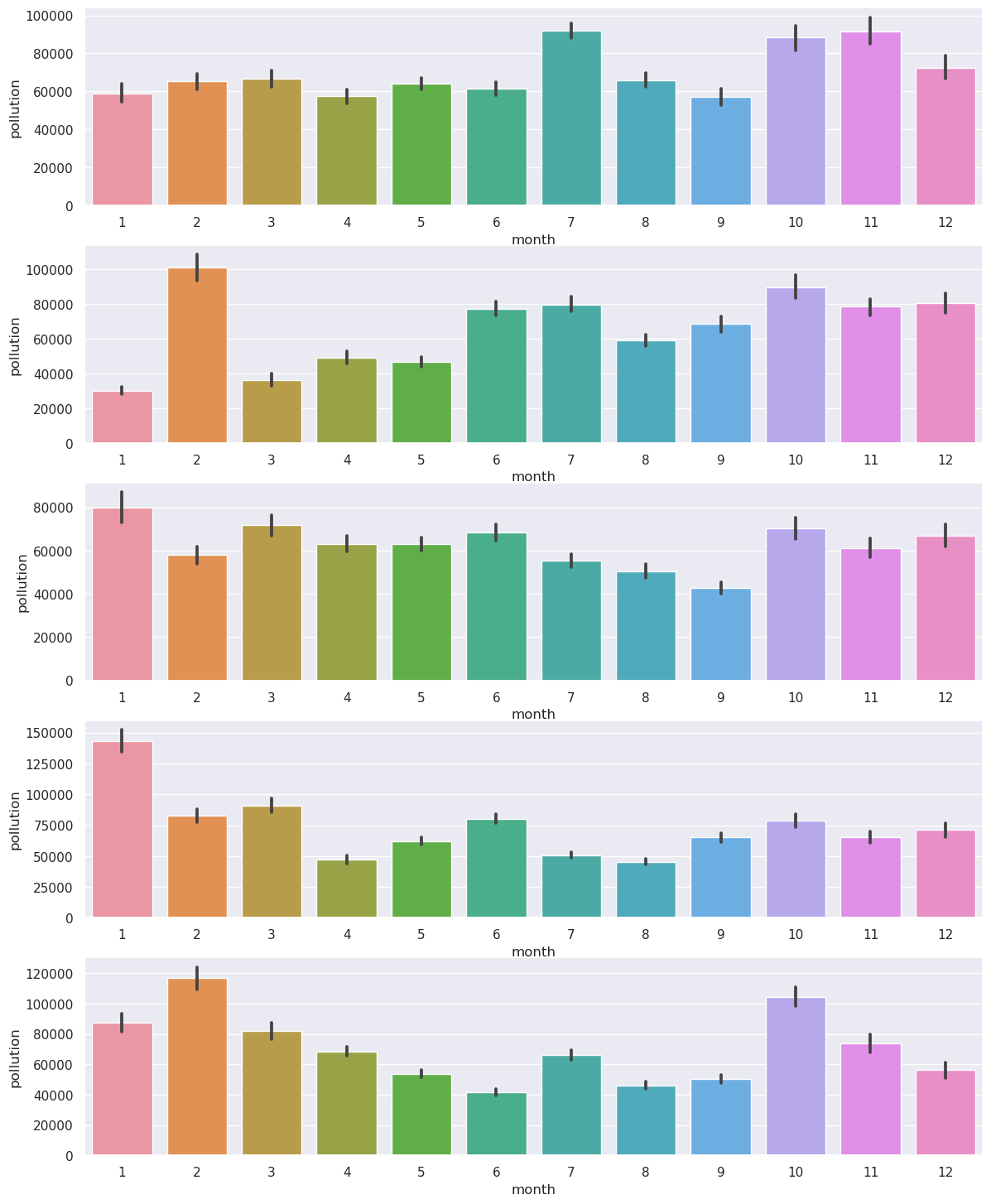

fig, ax = plt.subplots(nrows=5)
sns.set_style('whitegrid')
sns.set(rc={'figure.figsize':(4,1)})
sns.barplot(data = df_2010, x = df_2010['month'], y = df_2010['pollution'],label='pollution',ax=ax[0],estimator=np.sum)
sns.barplot(data = df_2011, x = df_2011['month'], y = df_2011['pollution'],label='pollution',ax=ax[1],estimator=np.sum)
sns.barplot(data = df_2012, x = df_2012['month'], y = df_2012['pollution'],label='pollution',ax=ax[2],estimator=np.sum)
sns.barplot(data = df_2013, x = df_2013['month'], y = df_2013['pollution'],label='pollution',ax=ax[3],estimator=np.sum)
sns.barplot(data = df_2014, x = df_2014['month'], y = df_2014['pollution'],label='pollution',ax=ax[4],estimator=np.sum)
plt.show()

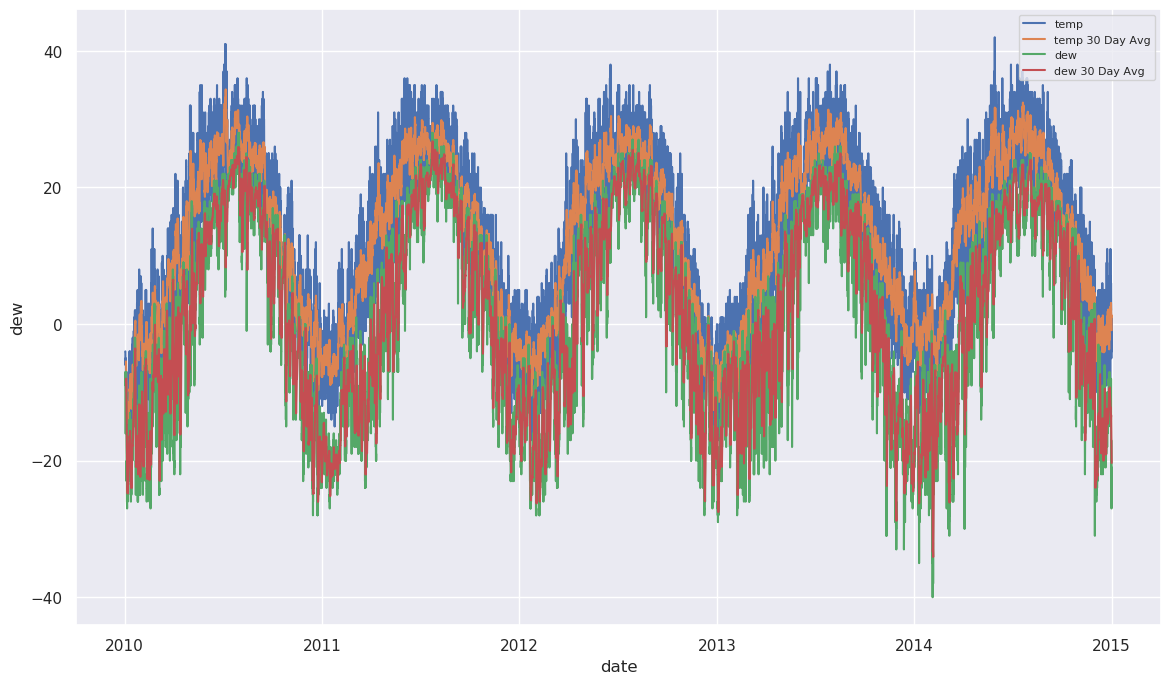

temp

& dew 추세 시각화

sns.set_style('whitegrid')
sns.set(rc={'figure.figsize':(14,8)})
sns.lineplot(data = df, x = df.index, y = 'temp',label='temp')
sns.lineplot(data = df, x = df.index, y = df['temp'].rolling(window=30).mean(),label='temp 30 Day Avg')
sns.lineplot(data = df, x = df.index, y = 'dew',label='dew')
sns.lineplot(data = df, x = df.index, y = df['dew'].rolling(window=30).mean(),label='dew 30 Day Avg')
plt.legend(loc =1,prop={'size':8})
plt.show()

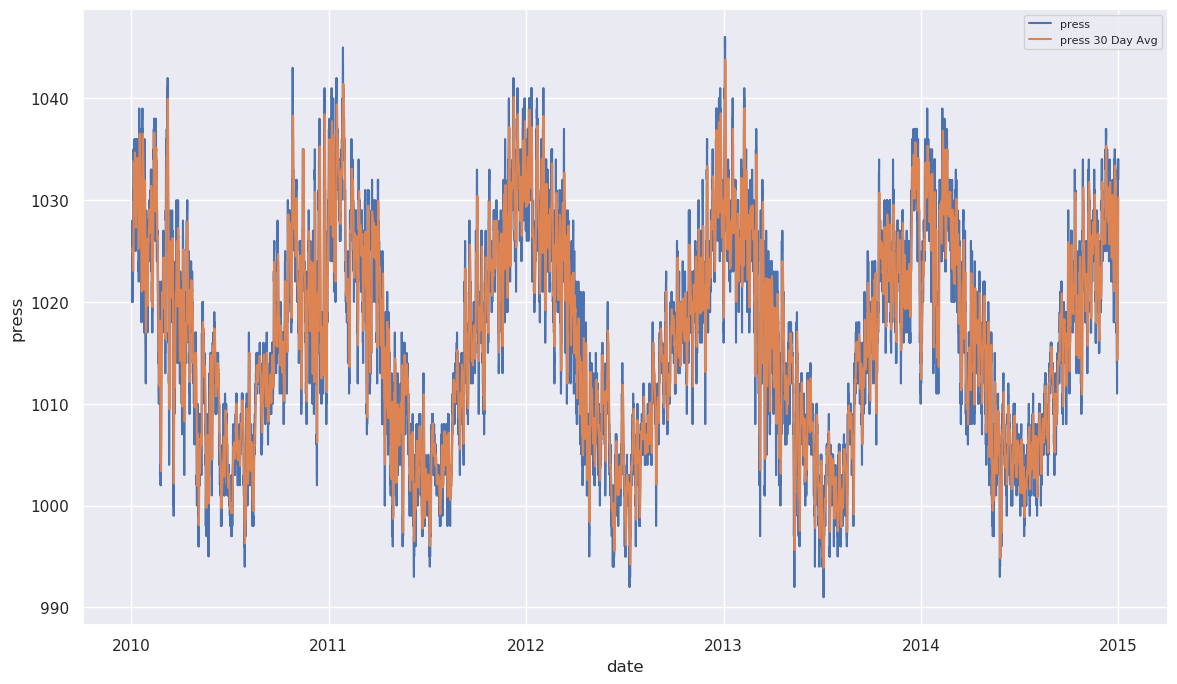

press 시각화

sns.set_style('whitegrid')
sns.set(rc={'figure.figsize':(14,8)})
sns.lineplot(data = df, x = df.index, y = 'press',label='press')
sns.lineplot(data = df, x = df.index, y = df['press'].rolling(window=30).mean(),label='press 30 Day Avg')
plt.legend(loc =1,prop={'size':8})
plt.show()

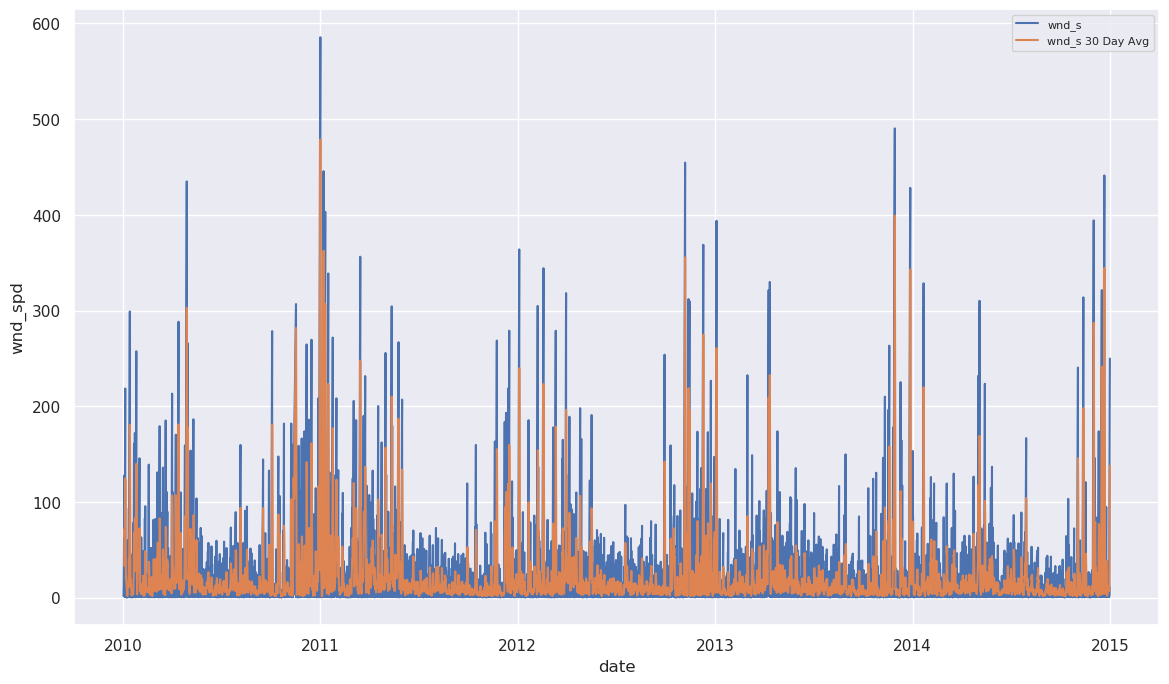

Wnd_spd 시각화

sns.set_style('whitegrid')
sns.set(rc={'figure.figsize':(14,8)})
sns.lineplot(data = df, x = df.index, y = 'wnd_spd',label='wnd_s')
sns.lineplot(data = df, x = df.index, y = df['wnd_spd'].rolling(window=30).mean(),label='wnd_s 30 Day Avg')
plt.legend(loc =1,prop={'size':8})
plt.show()

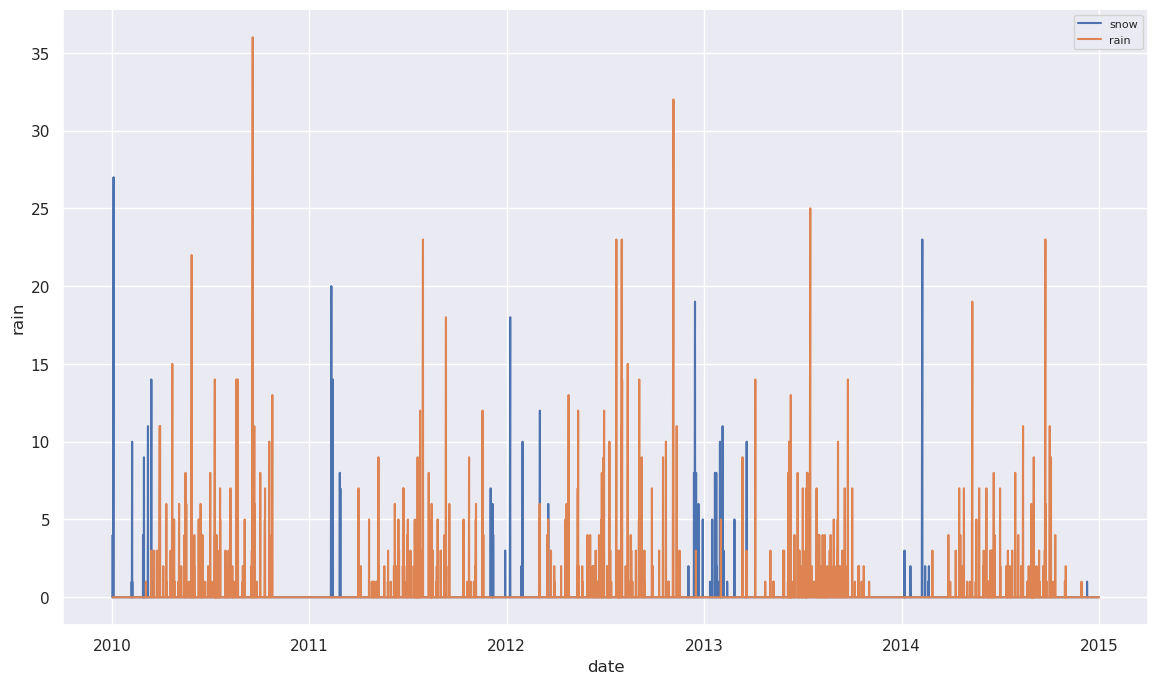

snow and rain 시각화

sns.set_style('whitegrid')
sns.set(rc={'figure.figsize':(14,8)})
sns.lineplot(data = df, x = df.index, y = 'snow',label='snow')
sns.lineplot(data = df, x = df.index, y = 'rain',label='rain')
plt.legend(loc =1,prop={'size':8})
plt.show()

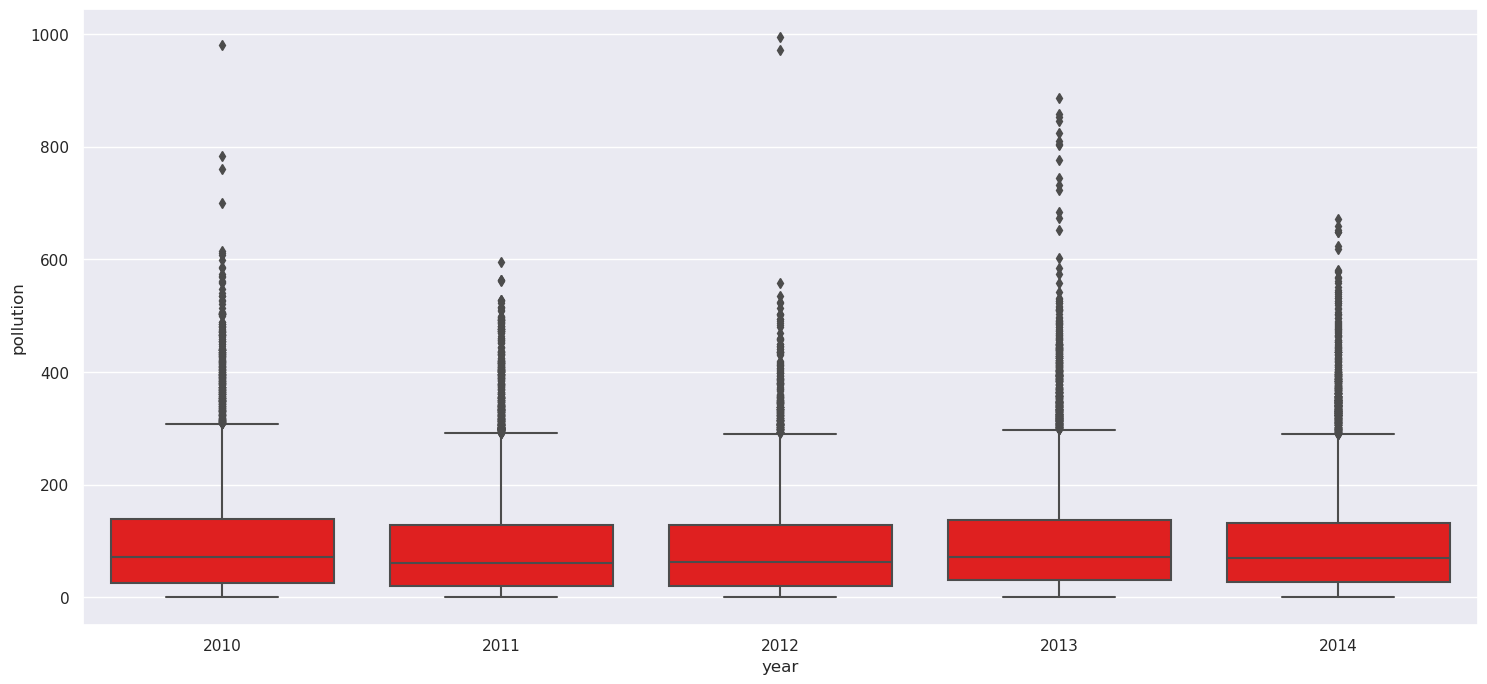

데이터 이상치 제거

sns.set_style('whitegrid')
sns.set(rc={'figure.figsize':(18,8)})
sns.boxplot(data = df, x = df['year'], y = 'pollution',color='red')
plt.show()

def outliers_iqr(data):
    q1, q3 = np.percentile(data,[25,75])
    iqr = q3- q1
    lower_bound = q1 - (iqr * 1.5)
    upper_bound = q3 + (iqr * 1.5)
    data  = (data > upper_bound) | (data < lower_bound)
    return df[data]

df_outlier_pollution = outliers_iqr(df['pollution'])

a = df_outlier_pollution.index
df.drop(a,inplace=True)

DatetimeIndex(['2010-01-17 21:00:00', '2010-01-17 23:00:00',
               '2010-01-18 02:00:00', '2010-01-18 03:00:00',
               '2010-01-18 04:00:00', '2010-01-18 05:00:00',
               '2010-01-18 19:00:00', '2010-01-18 20:00:00',
               '2010-01-18 21:00:00', '2010-01-18 22:00:00',
               ...
               '2014-12-28 02:00:00', '2014-12-28 03:00:00',
               '2014-12-28 04:00:00', '2014-12-28 22:00:00',
               '2014-12-28 23:00:00', '2014-12-29 00:00:00',
               '2014-12-29 01:00:00', '2014-12-29 02:00:00',
               '2014-12-29 03:00:00', '2014-12-29 04:00:00'],
              dtype='datetime64[ns]', name='date', length=1878, freq=None)

이상치 값 제거후 결과값 확인

df

	pollution	dew	temp	press	wnd_spd	snow	rain	wind_dir	year	month	day	hour
date
2010-01-02 00:00:00	129.0	-16	-4.0	1020.0	1.79	0	0	1	2010	1	2	0
2010-01-02 01:00:00	148.0	-15	-4.0	1020.0	2.68	0	0	1	2010	1	2	1
2010-01-02 02:00:00	159.0	-11	-5.0	1021.0	3.57	0	0	1	2010	1	2	2
2010-01-02 03:00:00	181.0	-7	-5.0	1022.0	5.36	1	0	1	2010	1	2	3
2010-01-02 04:00:00	138.0	-7	-5.0	1022.0	6.25	2	0	1	2010	1	2	4
...	...	...	...	...	...	...	...	...	...	...	...	...
2014-12-31 19:00:00	8.0	-23	-2.0	1034.0	231.97	0	0	3	2014	12	31	19
2014-12-31 20:00:00	10.0	-22	-3.0	1034.0	237.78	0	0	3	2014	12	31	20
2014-12-31 21:00:00	10.0	-22	-3.0	1034.0	242.70	0	0	3	2014	12	31	21
2014-12-31 22:00:00	8.0	-22	-4.0	1034.0	246.72	0	0	3	2014	12	31	22
2014-12-31 23:00:00	12.0	-21	-3.0	1034.0	249.85	0	0	3	2014	12	31	23

41922 rows × 12 columns

df_2010 = df[df['year']==2010]
df_2011 = df[df['year']==2011]
df_2012 = df[df['year']==2012]
df_2013 = df[df['year']==2013]
df_2014 = df[df['year']==2014]

df_2014

	pollution	dew	temp	press	wnd_spd	snow	rain	wind_dir	year	month	day	hour
date
2014-01-01 00:00:00	24.0	-20	7.0	1014.0	143.48	0	0	3	2014	1	1	0
2014-01-01 01:00:00	53.0	-20	7.0	1013.0	147.50	0	0	3	2014	1	1	1
2014-01-01 02:00:00	65.0	-20	6.0	1013.0	151.52	0	0	3	2014	1	1	2
2014-01-01 03:00:00	70.0	-20	6.0	1013.0	153.31	0	0	3	2014	1	1	3
2014-01-01 04:00:00	79.0	-18	3.0	1012.0	0.89	0	0	4	2014	1	1	4
...	...	...	...	...	...	...	...	...	...	...	...	...
2014-12-31 19:00:00	8.0	-23	-2.0	1034.0	231.97	0	0	3	2014	12	31	19
2014-12-31 20:00:00	10.0	-22	-3.0	1034.0	237.78	0	0	3	2014	12	31	20
2014-12-31 21:00:00	10.0	-22	-3.0	1034.0	242.70	0	0	3	2014	12	31	21
2014-12-31 22:00:00	8.0	-22	-4.0	1034.0	246.72	0	0	3	2014	12	31	22
2014-12-31 23:00:00	12.0	-21	-3.0	1034.0	249.85	0	0	3	2014	12	31	23

8284 rows × 12 columns

fig, ax = plt.subplots(nrows=5)
sns.set_style('whitegrid')
sns.set(rc={'figure.figsize':(14,18)})
sns.lineplot(data = df_2010, x = df_2010.index, y = 'pollution',label='pollution',ax=ax[0])
sns.lineplot(data = df_2010, x = df_2010.index, y = df_2010['pollution'].rolling(window=30).mean(),label='pollution 30 Day Avg',ax=ax[0])
sns.lineplot(data = df_2011, x = df_2011.index, y = 'pollution',label='pollution',ax=ax[1])
sns.lineplot(data = df_2011, x = df_2011.index, y = df_2011['pollution'].rolling(window=30).mean(),label='pollution 30 Day Avg',ax=ax[1])
sns.lineplot(data = df_2012, x = df_2012.index, y = 'pollution',label='pollution',ax=ax[2])
sns.lineplot(data = df_2012, x = df_2012.index, y = df_2012['pollution'].rolling(window=30).mean(),label='pollution 30 Day Avg',ax=ax[2])
sns.lineplot(data = df_2013, x = df_2013.index, y = 'pollution',label='pollution',ax=ax[3])
sns.lineplot(data = df_2013, x = df_2013.index, y = df_2013['pollution'].rolling(window=30).mean(),label='pollution 30 Day Avg',ax=ax[3])
sns.lineplot(data = df_2014, x = df_2014.index, y = 'pollution',label='pollution',ax=ax[4])
sns.lineplot(data = df_2014, x = df_2014.index, y = df_2014['pollution'].rolling(window=30).mean(),label='pollution 30 Day Avg',ax=ax[4])
plt.show()

fig, ax = plt.subplots(nrows=5)
sns.set_style('whitegrid')
sns.set(rc={'figure.figsize':(4,1)})
sns.barplot(data = df_2010, x = df_2010['month'], y = df_2010['pollution'],label='pollution',ax=ax[0],estimator=np.sum)
sns.barplot(data = df_2011, x = df_2011['month'], y = df_2011['pollution'],label='pollution',ax=ax[1],estimator=np.sum)
sns.barplot(data = df_2012, x = df_2012['month'], y = df_2012['pollution'],label='pollution',ax=ax[2],estimator=np.sum)
sns.barplot(data = df_2013, x = df_2013['month'], y = df_2013['pollution'],label='pollution',ax=ax[3],estimator=np.sum)
sns.barplot(data = df_2014, x = df_2014['month'], y = df_2014['pollution'],label='pollution',ax=ax[4],estimator=np.sum)
plt.show()

pollution data와 상관관계 분석

df1=df.reset_index(drop=True)
X=df1.drop('pollution', 1)
X=X.drop('day',1)
X=X.drop('hour',1)

X

/opt/conda/lib/python3.7/site-packages/ipykernel_launcher.py:2: FutureWarning: In a future version of pandas all arguments of DataFrame.drop except for the argument 'labels' will be keyword-only

/opt/conda/lib/python3.7/site-packages/ipykernel_launcher.py:3: FutureWarning: In a future version of pandas all arguments of DataFrame.drop except for the argument 'labels' will be keyword-only
  This is separate from the ipykernel package so we can avoid doing imports until
/opt/conda/lib/python3.7/site-packages/ipykernel_launcher.py:4: FutureWarning: In a future version of pandas all arguments of DataFrame.drop except for the argument 'labels' will be keyword-only
  after removing the cwd from sys.path.

	dew	temp	press	wnd_spd	snow	rain	wind_dir	year	month
0	-16	-4.0	1020.0	1.79	0	0	1	2010	1
1	-15	-4.0	1020.0	2.68	0	0	1	2010	1
2	-11	-5.0	1021.0	3.57	0	0	1	2010	1
3	-7	-5.0	1022.0	5.36	1	0	1	2010	1
4	-7	-5.0	1022.0	6.25	2	0	1	2010	1
...	...	...	...	...	...	...	...	...	...
41917	-23	-2.0	1034.0	231.97	0	0	3	2014	12
41918	-22	-3.0	1034.0	237.78	0	0	3	2014	12
41919	-22	-3.0	1034.0	242.70	0	0	3	2014	12
41920	-22	-4.0	1034.0	246.72	0	0	3	2014	12
41921	-21	-3.0	1034.0	249.85	0	0	3	2014	12

41922 rows × 9 columns

y=df1[["pollution"]]
y

	pollution
0	129.0
1	148.0
2	159.0
3	181.0
4	138.0
...	...
41917	8.0
41918	10.0
41919	10.0
41920	8.0
41921	12.0

41922 rows × 1 columns

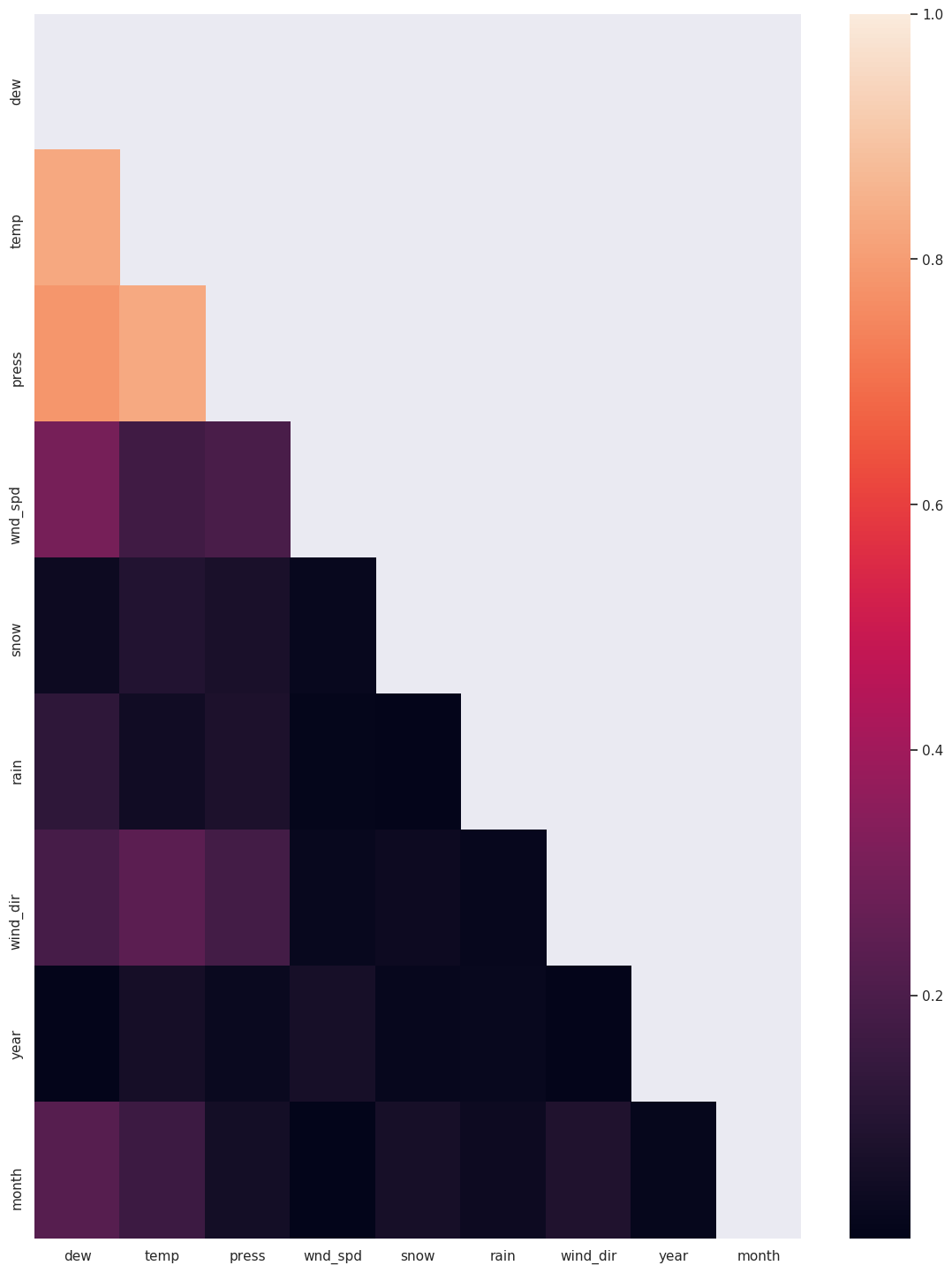

# Create correlation matrix
corr_matrix = X.corr().abs()

# Select upper triangle of correlation matrix
upper = corr_matrix.where(np.triu(np.ones(corr_matrix.shape), k=1).astype(bool))

# Find index of feature columns with correlation greater than 0.6
to_drop = [column for column in upper.columns if any(upper[column] > 0.6)]
dataplot = sns.heatmap(corr_matrix,mask=np.triu(np.ones(corr_matrix.shape)))
plt.show()

X

	dew	temp	press	wnd_spd	snow	rain	wind_dir	year	month
0	-16	-4.0	1020.0	1.79	0	0	1	2010	1
1	-15	-4.0	1020.0	2.68	0	0	1	2010	1
2	-11	-5.0	1021.0	3.57	0	0	1	2010	1
3	-7	-5.0	1022.0	5.36	1	0	1	2010	1
4	-7	-5.0	1022.0	6.25	2	0	1	2010	1
...	...	...	...	...	...	...	...	...	...
41917	-23	-2.0	1034.0	231.97	0	0	3	2014	12
41918	-22	-3.0	1034.0	237.78	0	0	3	2014	12
41919	-22	-3.0	1034.0	242.70	0	0	3	2014	12
41920	-22	-4.0	1034.0	246.72	0	0	3	2014	12
41921	-21	-3.0	1034.0	249.85	0	0	3	2014	12

41922 rows × 9 columns

X_columns=list(X.columns)
y_columns=["pollution"]
y['pollution']

0        129.0
1        148.0
2        159.0
3        181.0
4        138.0
         ...
41917      8.0
41918     10.0
41919     10.0
41920      8.0
41921     12.0
Name: pollution, Length: 41922, dtype: float64

correlation_result={}
for i in range(len(X_columns)):
    correlation = X[X_columns[i]].corr(y["pollution"])
    correlation_result[X_columns[i]]=correlation
correlation_result=sorted(correlation_result.items(), key = lambda kv:(kv[1], kv[0]),reverse=True)
correlation_result

[('dew', 0.24195768588072772),
 ('snow', 0.027031686105242845),
 ('temp', 0.0054214633141136176),
 ('month', -0.0035802732371824865),
 ('year', -0.004382839945228096),
 ('rain', -0.04478088117752061),
 ('wind_dir', -0.06654092218769357),
 ('press', -0.12746589207774287),
 ('wnd_spd', -0.24659006381823134)]

temp=[]
for i in correlation_result:
    temp.append(i[0]) # key값 입력

X_train2=X[temp]
X_train2

	dew	snow	temp	month	year	rain	wind_dir	press	wnd_spd
0	-16	0	-4.0	1	2010	0	1	1020.0	1.79
1	-15	0	-4.0	1	2010	0	1	1020.0	2.68
2	-11	0	-5.0	1	2010	0	1	1021.0	3.57
3	-7	1	-5.0	1	2010	0	1	1022.0	5.36
4	-7	2	-5.0	1	2010	0	1	1022.0	6.25
...	...	...	...	...	...	...	...	...	...
41917	-23	0	-2.0	12	2014	0	3	1034.0	231.97
41918	-22	0	-3.0	12	2014	0	3	1034.0	237.78
41919	-22	0	-3.0	12	2014	0	3	1034.0	242.70
41920	-22	0	-4.0	12	2014	0	3	1034.0	246.72
41921	-21	0	-3.0	12	2014	0	3	1034.0	249.85

41922 rows × 9 columns

top_5_features=[]
for i in range(5):
    top_5_features.append(correlation_result[i][0])

top_5_features

['dew', 'snow', 'temp', 'month', 'year']

X_train=X[top_5_features]

#refhttps://stackoverflow.com/questions/39409866/correlation-heatmap
# calculate the correlation matrix
corr = X_train.corr()
cmap = cmap=sns.diverging_palette(5, 250, as_cmap=True)

def magnify():
    return [dict(selector="th",
                 props=[("font-size", "15pt")]),
            dict(selector="td",
                 props=[('padding', "0em 0em")]),
            dict(selector="th:hover",
                 props=[("font-size", "12pt")]),
            dict(selector="tr:hover td:hover",
                 props=[('max-width', '300px'),
                        ('font-size', '12pt')])
]

corr.style.background_gradient(cmap, axis=1)\
    .set_properties(**{'max-width': '80px', 'font-size': '10pt'})\
    .set_caption("Hover to magify")\
    .set_precision(2)\
    .set_table_styles(magnify())

/opt/conda/lib/python3.7/site-packages/ipykernel_launcher.py:21: FutureWarning: this method is deprecated in favour of `Styler.format(precision=..)`

Hover to magify
| | dew | snow | temp | month | year |
| --- | --- | --- | --- | --- | --- |
| dew | 1.00 | -0.03 | 0.83 | 0.23 | 0.01 |
| snow | -0.03 | 1.00 | -0.09 | -0.06 | -0.02 |
| temp | 0.83 | -0.09 | 1.00 | 0.16 | 0.06 |
| month | 0.23 | -0.06 | 0.16 | 1.00 | 0.01 |
| year | 0.01 | -0.02 | 0.06 | 0.01 | 1.00 |

X_train=df[top_5_features]
X_train

	dew	snow	temp	month	year
date
2010-01-02 00:00:00	-16	0	-4.0	1	2010
2010-01-02 01:00:00	-15	0	-4.0	1	2010
2010-01-02 02:00:00	-11	0	-5.0	1	2010
2010-01-02 03:00:00	-7	1	-5.0	1	2010
2010-01-02 04:00:00	-7	2	-5.0	1	2010
...	...	...	...	...	...
2014-12-31 19:00:00	-23	0	-2.0	12	2014
2014-12-31 20:00:00	-22	0	-3.0	12	2014
2014-12-31 21:00:00	-22	0	-3.0	12	2014
2014-12-31 22:00:00	-22	0	-4.0	12	2014
2014-12-31 23:00:00	-21	0	-3.0	12	2014

41922 rows × 5 columns
